Professional press brake tooling and bending molds engineered from premium chromium molybdenum steel. Precision-machined dies and punches deliver consistent, high-quality bends with exceptional durability and extended tool life for demanding sheet metal fabrication applications.
High-performance press brake tooling engineered for precision sheet metal bending operations
Superior quality tooling engineered for precision, durability, and consistent performance in demanding sheet metal fabrication environments
Precision ground surfaces with thickness tolerance within Β±0.001mm and flatness Β±0.001mm ensure consistent, high-quality bends every time
Manufactured from premium chromium molybdenum steel with exceptional strength, corrosion resistance, and wear properties
Advanced heat treatment (HRC 45-58) provides superior hardness and wear resistance for longer service life and reduced replacement costs
Uniform hardness distribution and precision geometry ensure stable processing quality even under high-intensity production use
Complete range of die types including V-dies, gooseneck, hemming, and custom profiles for diverse bending applications
Durable construction and wear resistance minimize regrind cycles and tool changes, maximizing production uptime
Comprehensive range of precision-engineered press brake dies and punches for diverse bending applications

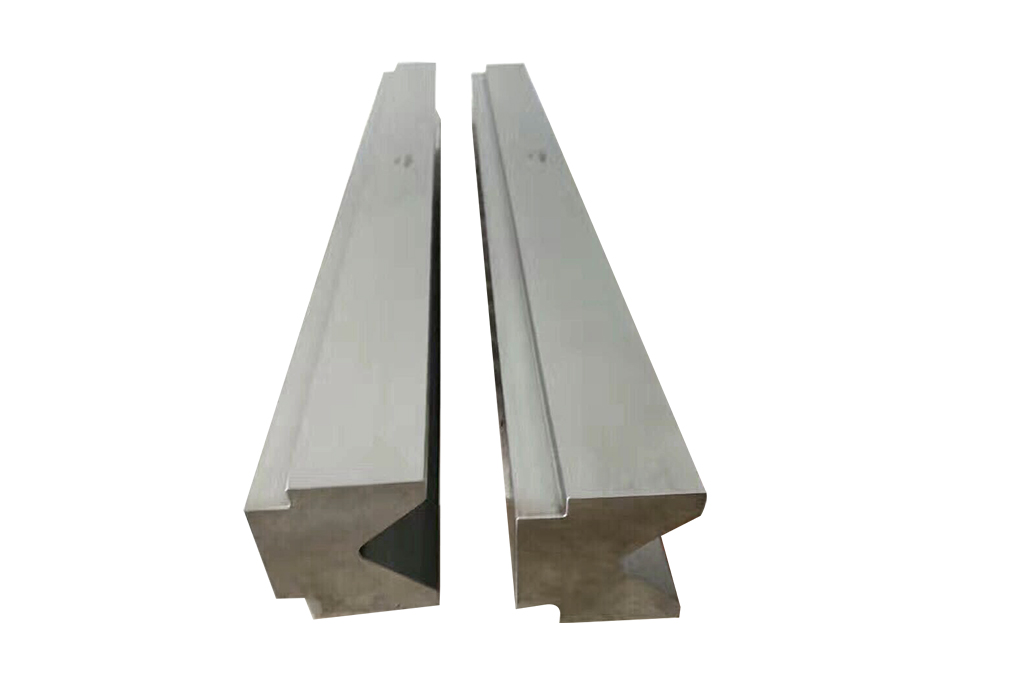

The most common type of press brake tooling, V-dies feature varying die opening widths to accommodate different material thicknesses and bend angles. Available in single, double, and multi-groove configurations. Precision ground surfaces ensure accurate bend angles and consistent repeatability. Standard lengths: 500mm, 515mm, 835mm.

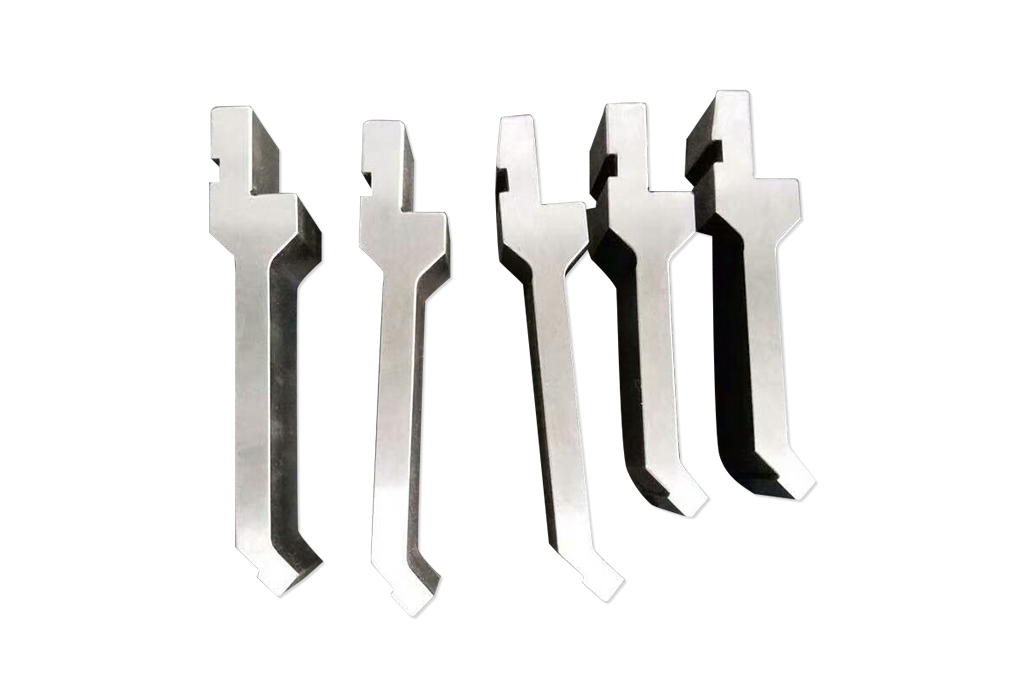

Precision-machined upper tooling with various nose radii and angles for different bending applications. Standard punch angles include 88Β°, 90Β°, and custom profiles. Heat-treated to HRC 45-58 for superior wear resistance. Compatible with quick-change segmented tooling systems for fast setup and changeover.

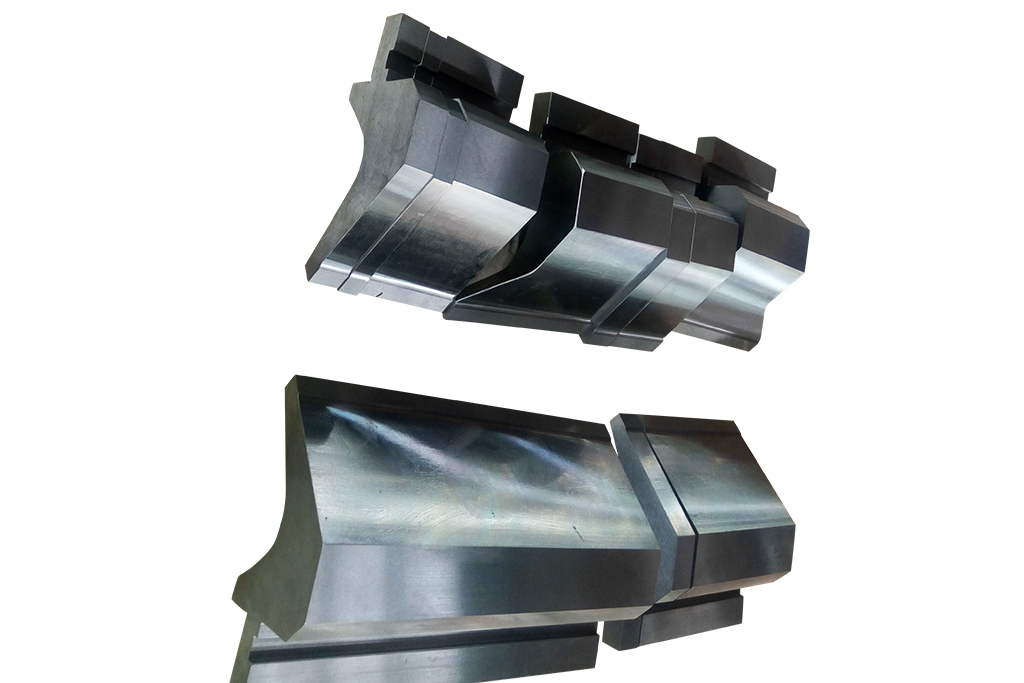

Specialized tooling designed for forming return flanges and working with pre-bent parts. The unique profile provides clearance for existing flanges, preventing interference during secondary bending operations. Essential for complex sheet metal fabrication requiring multiple bends and tight geometries.

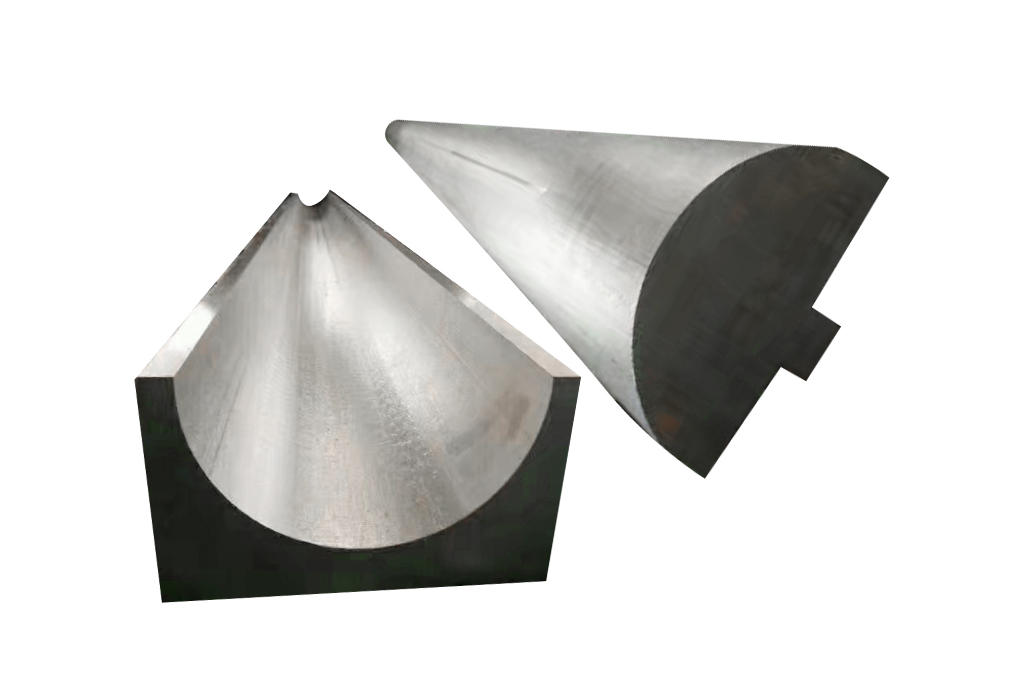

Specialized curved tooling designed to form smooth radius bends and arcs with consistent curvature. Features precision-machined radius profiles (R5, R10, R15, R20, etc.) for creating rounded corners, cylindrical sections, and decorative curves. Essential for HVAC ductwork, pipe fittings, architectural metalwork, and decorative applications. Eliminates the need for post-bending forming operations while ensuring uniform radius along the entire bend length.

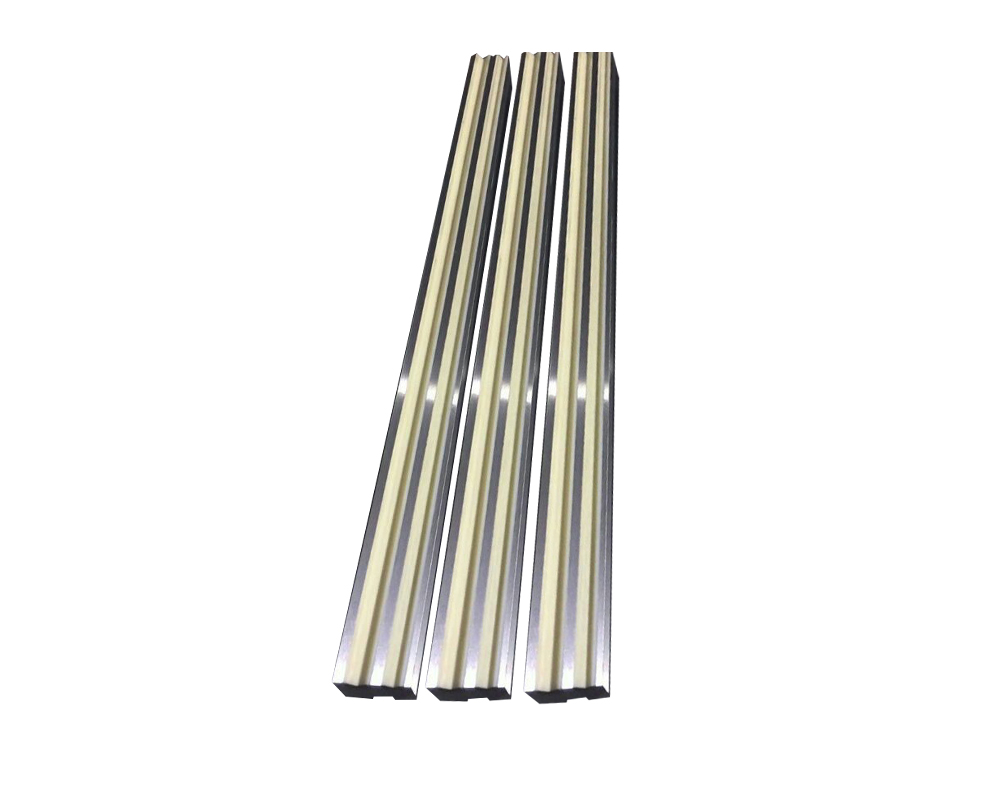

Engineered custom tooling for specialized bending applications including U-channels, Z-profiles, radius bends, offset bends, and complex geometries. Manufactured to customer specifications with tight tolerances. Ideal for high-volume production requiring consistent, repeatable custom profiles.

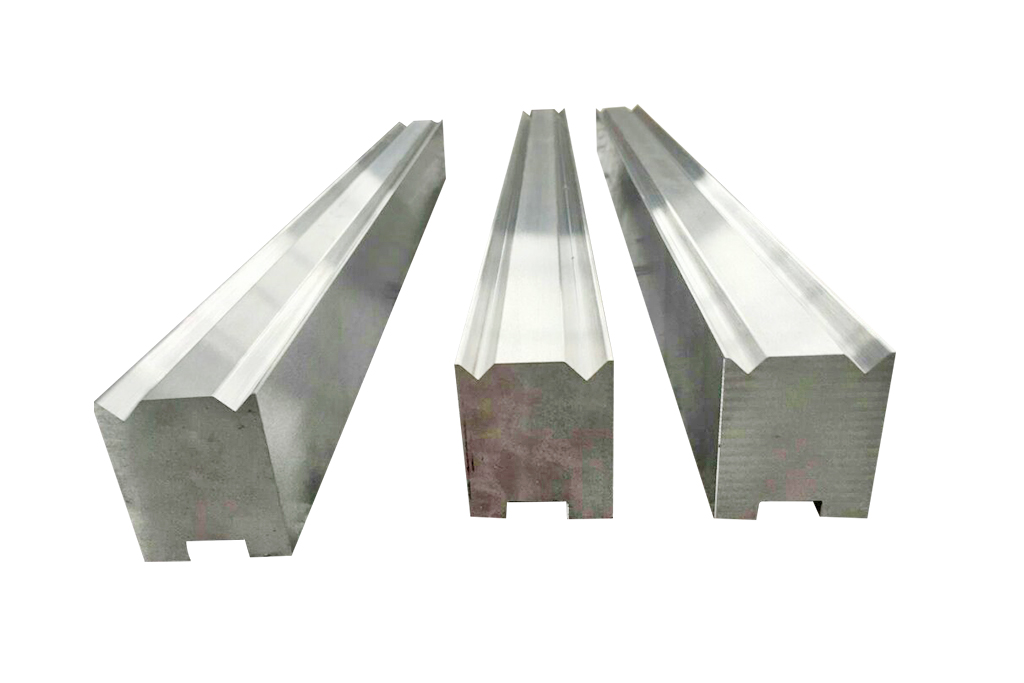

The foundation component of press brake tooling featuring precision-machined V-grooves in various opening widths (6V, 8V, 12V, 16V, etc.). Constructed from hardened chromium molybdenum steel with ground surfaces for superior accuracy. Available in single-groove and multi-groove configurations to accommodate different material thicknesses. The V-opening determines the minimum bend radius and is critical for achieving accurate bend angles. Features secure mounting channels for stable clamping to the press brake bed, ensuring consistent positioning and repeat accuracy across production runs.
Our press brake tooling systems are essential for precision sheet metal bending across diverse industries
Creating lightweight, high-strength structural components, brackets, and panels for aircraft with tight tolerances
Bending chassis components, body panels, brackets, and structural parts for cars, trucks, and commercial vehicles
Forming hull sections, deck plates, bulkheads, and structural steel elements for marine vessels
Precision bending of server racks, control cabinets, electrical panels, and equipment housings
Forming ductwork, air handling units, and ventilation components for commercial and industrial applications
Bending panels and components for refrigerators, ovens, washers, and other household appliances
Creating metal furniture frames, shelving systems, and architectural metalwork with decorative bends
Manufacturing structural components, brackets, and protective covers for heavy machinery and equipment
Complete tooling solutions with standard configurations and optional upgrades for specialized applications
